Water Bath Pharmaceutical Autoclave For Decontamination Vaccines Production With Validation Port

Description

The working principle of Medpharm Super heated water spray autoclave is based on the

automatic counter pressure by injection of compressed air into the chamber during the entire

cycle to minimize the differential pressure across the containers generated by the exposure to heat.

Specifications

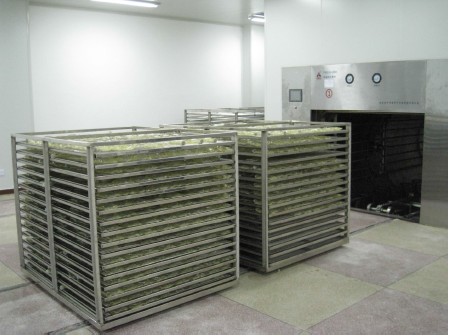

• Design for installation on the floor (for loading with in-chamber & transfer trolley) or pit mounted (for loading at floor level with in/out trolleys or automatic loading/unloading units)
• Single or double door with Sliding door options to suit client specific requirements.
• Cylindrical single-wall chamber in highly finish 304 stainless steel.
• Chamber pipings and fittings in 304 stainless steel, Tri-clover clamp connection.
• Water spray distribution headers fitted with nozzle suitably located to assure water uniform distribution on the product with consequent excellent temperature uniformity throughout the entire load.
• High efficiency plate type heat exchanger, in AISI 316L S.S., for recirculation of heating / cooling water.
• Pressure Monitoring inside the chamber by pressure transmitter.
• Water level monitoring inside the chamber by sight level assembly and capacitive level sensors.
• The touch-screen for visual process control and connections for measuring signals and printers.
• Remote support connection as option.
• Online Printing and recording confirming to 21 CFR PART 11.
• Contamination Seal to prevent cross-flow of air between the clean and un-clean area.
• Validation ports for insertion of temperature sensors for thermometric testing

Applications

Sterilization of filled containers of HDPE/LDPE bottles, PVC multi-layer pouches or glass bottles.

Competitive Advantage

1. Using sanitary-type centrifugal pump, water from the bottom of the chamber will be circulated

through a heat exchanger.

2. After that water will be circulated into the upper part of the chamber and it will be distributed

on the load by a system of spray nozzles.

3. Water is maintained in liquid form at super heated temperature due to positive pressure

in the chamber and thereby efficiently sterilizes the load.

4. Positive pressure is maintained in the chamber that counterbalances pressure build up

in flexible containers thus preventing container bursting or deformation.

Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf

MEDPHARM Company team is committed to providing quality sterilization products, service, parts and

maintenance training at significant savings. From customized parts packages to turnkey equipment

 acquisition and installation, our innovative sterilization solutions are designed to meet our customers' needs.

We understand that untimely breakdowns are costly and can be detrimental to your everyday operations.

Our  service team is compromised of expert technicians that respond quickly to all of your service needs.

We offer on-site service support including inservices, installation and deinstallation of your equipment. From

breakdown  repairs to comprehensive maintenance programs, we have an innovative service solution for you.

We will service on-Site Repairs.Our staff is equipped with the resources required to provide you with

on-site,   on-time repairs in compliance with manufacturer specifications. We also provide installation,

deinstallation, and inservices on most makes and models of sterilization equipment. Near or far we can

 provide you with service support that you need.

Our reconditioning background has taught us of the importance of having quality parts on hand at all times.  We have a large inventory of individual repair parts, as well as preventive maintenance kits, and consumables  in stock and ready to ship today.

With our expert technical support staff, it is not always necessary to have part numbers to place an order.

 We will help you identify the quality parts that you need.
